Dyno proven RenaultSport Twingo RS profiles now available from CatCams
Dyno proven RenaultSport Twingo RS profiles now available from CatCams


Thanks to its lightweight compact package, superb dynamics and standard power to weight ratio of 127 Bhp per ton, the RenaultSport Twingo 133 is regarded as the finest compact hot hatch on sale in the UK at the moment. Such is the quality of its chassis that the general consensus of opinion is that it could cope with plenty more power than the factory supplies and now Belgian performance valvetrain specialist Cat Cams NV can answer that need, with a set of high performance profiles targeted at the Twingo 133 fast road / trackday market.

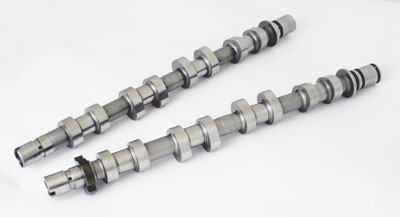

Carrying part number 5504701, the new Cat Cams ‘Sport’ profiles for the RenaultSport Twingo 133 are manufactured to the following technical specification:-

partnr.

duration

duration

maximum lift

parts

application

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]


OEM

254° / 250°

213° / 201°

10.65 / 7.95 mm

O.E.M

OEM

5504701

261° / 241°

223° / 203°

11.25 / 9.25 mm

O.E.M

Fast Road Sport




Dyno testing by Cat Cams’ Renault specialist partner K-Tec Racing Ltd has proven that in conjunction with an ECU remap to optimise fuelling and ignition parameters the 5504701 profiles add power and torque throughout the engine’s rev range, culminating in 12bhp and 5lb.ft at peak. Gains are particularly noticeable from 4500rpm upwards, with the Cat Cams equipped engine delivering a far more sporty performance than standard all the way up to 7000rpm making the Twingo feel like a real hot hatch!





 NEW SPORT CAM PROFILES FOR MK2 FORD FOCUS RS AND ST GAIN UP TO 40BHP!
NEW ‘SPORT’ CAM PROFILES FOR MK2 FORD FOCUS RS AND ST GAIN UP TO 40BHP!

With power outputs of 500bhp at the wheels now being possible on the 2.5-litre, 300PS turbocharged inline 5-cylinder engine found in the Mk2 Ford Focus RS (and also the Focus / Mondeo ST,) it’s no surprise that this engine is regarded as a tuner’s favourite.

And now Belgian performance valvetrain specialist Cat Cams NV has developed the ultimate cams for the Blue Oval’s flagship models a pair of performance ‘Sport’ profiles that maximise the mid-range and top end power and torque output on tuned examples of the Focus RS and Focus / Mondeo ST, whilst retaining everyday driveability. Careful design by Cat Cams means that these are the most aggressive profiles that can be used on the standard pistons.


Mindful that most Mk2 Ford Focus RS / ST and Mondeo ST customers retain the standard ECU, Cat Cams has optimised the timing to maintain the factory idle and emissions characteristics. This also ensures low-speed driveability and MOT compliance, whilst promoting rapid turbo spool up even on cars running larger, aftermarket turbochargers.

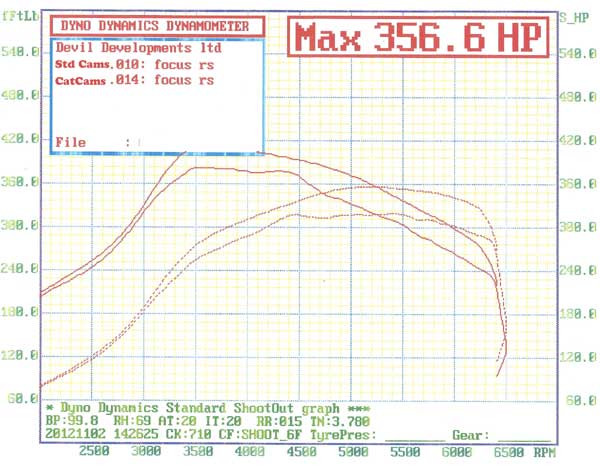

Back to back dyno testing by leading Ford tuner Devil Developments on a Stage 3 modified Focus RS (running standard injectors and turbo,) has shown that impressive gains of up to 40bhp and 36lb.ft are possible with the Cat Cams’ Sport profiles, with power and torque increases from 3000rpm to the 6500rpm limiter. Testing on a ‘Stage 4’ tuned Focus RS (with larger injectors and uprated fuel pump, plus further ECU remapping) has shown similar gains, peaking at 417bhp and 456lb.ft of torque.

Carrying part number 2395302, the new Cat Cams are manufactured to the following technical specification:-

partnr.

duration

duration

maximum lift

parts

application

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]

(TURBO)

2395302

254° / 254°

209° / 209°

9.55 / 9.55 mm

O.E.M

Fast Road Sport



CNC machined from top quality steel billets, the Cat Cams ‘Sport’ 2395302 profiles are a direct swap for the original Ford cams and are directly compatible with the OEM mechanical followers, avoiding the need for valve clearance reshimming.






Cat Cams launches Renault F4R finger followers for high rpm usage
Cat Cams launches Renault F4R finger followers for high rpm usage
Belgium based high performance valvetrain specialist Cat Cams NV is pleased to announce a replacement finger cam follower package for the highly popular 2.0-litre, 16-valve Renault F4R engines as used in the Clio 172 / 182 / 197 and 200 models. In standard form the original RenaultSport valvetrain limits the F4R’s power output to around 260 bhp and 7800 rpm, because the standard roller finger followers are a known weak point and are not designed for prolonged high engine speeds. Therefore Cat Cams decided to redesign the F4R’s valvetrain following extensive CAD examination of various layout options.

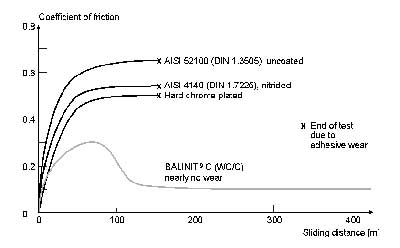

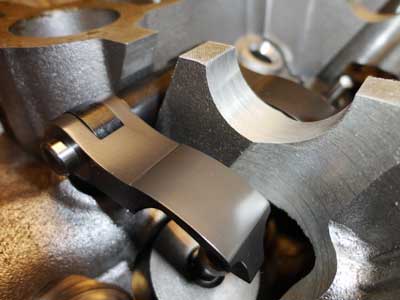

Cat Cams settled on using new, bespoke finger cam followers that feature sliding contact. To ensure that these followers remain aligned on the valve top, the original RenaultSport F4R hydraulic lash adjusters are replaced by Cat Cam’s solid inserts, which are connected and locked by a common shaft. This shaft also acts as the rotation axis to make it impossible for the cam follower to leave its pivot.

The exact geometry for the new sliding finger followers was determined using Cat Cams’ dedicated in-house software for detailed motion analysis, while Finite Element Analysis (FEA) software was used to optimise strength, stiffness and weight. Main target parameters included: system clearance for 15mm valve lift, and a 40mm contact diameter for the virtual equivalent bucket tappet. Finally, a default range of cam profiles was developed, again using state-of-the-art cam design software that is continuously being developed on the premises since 1998.

With the new Cat Cam’s set up, the valve clearance on the F4R motor is set using lash caps with an extra long 4mm skirt sliding over the valve tip, and dual valve springs (manufactured by PAC Racing) with lightweight steel retainers and spring seats complete the kit.

Installation of the Cat Cams F4R finger cam follower setup requires a slot be machined in the cylinder head between the spark plug hole and the cam bearing, simply to provide the required clearance for the connecting shaft.

Ken Stessens, responsible for cam design and product development, testifies from own experience: "A simple manual milling machine with tilt table, a bullnose tool and 2 hours of hassle-free labour is all it takes to install the new cam follower hardware."

Once the Cat Cams RenaultSport F4R engine finger cam follower setup is installed, the high rpm potential of the engine can be fully realised and the valvetrain ceases to be a weak link. This theoretically endows the F4R motor with 9,000 rpm / 300 bhp plus potential when built using upgraded forged crankshaft, connecting rods and pistons.

Interested parties should please contact Cat Cams UK for more information and pricing on the RenaultSport F4R finger cam follower upgrade and associated cam profiles.





Get the ultimate fast road cams for 206 GTi 180, dyno proven to gain 14 bhp
Get the ultimate fast road cams for 206 GTi 180, dyno proven to gain 14 bhp


New ‘Sport’ profiles for the 2003-2006 Peugeot 206 GTi 180
High lift / short duration design to maximise torque and power
Dyno proven to add over 14 bhp in conjunction with ECU remap
Optimised increases in lift and duration yet retains good idle quality
CNC ground from chilled cast blank / steel billet combination
Direct replacement for original Peugeot items
Available now from Cat Cams UK priced at £527.12 excluding VAT, carrying part number 4901804
Here at Cat Cams NV, we’re always looking to make things better. To improve. To go beyond standard, to deliver the performance that you desire and deserve.

Hence why Cat Cams NV is pleased to launch a set of no-compromise fast road sport profiles for the Peugeot 206 GTi 180, which uses the 1997cc EW10J4S engine.

Designed to deliver a noticeable gain in performance throughout the rev range, while retaining everyday usability, Cat Cams’ technicians have analysed the valvetrain in the 180’s VVT engine and produced a pair of camshafts that are significantly better in every respect.

Cat Cams is the only cam designer offering profiles for the 206 GTi 180. Why? Because the EW10J4S engine incorporates variable valve timing (VVT) on the inlet cam, meaning that Cat Cams NV has to produce the inlet profile from steel billet, while the exhaust cam is manufactured from a chill cast blank. This makes it relatively difficult to produce, but once again, Cat Cams has risen to the challenge!

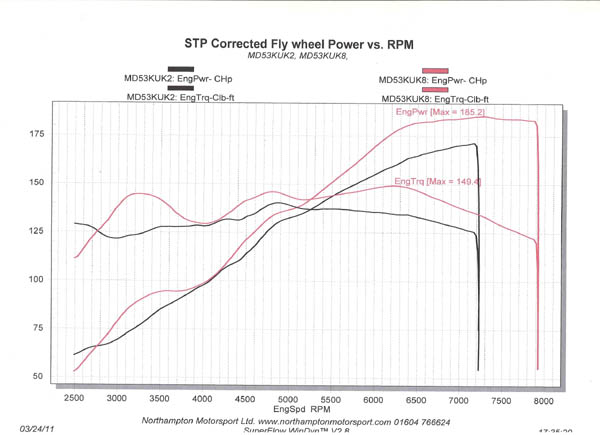

Back to back dyno testing conducted by Peugeot specialist Pug1off at Northampton Motorsport’s chassis dyno confirmed that in conjunction with an ECU remap, the Cat Cams Sport 4901804 profiles for the 206 GTi 180 gain power and torque throughout the rev range, from just 2750 rpm upwards.

Peak power increases by 14 bhp at 7250 rpm, with gains of 17-18 bhp over standard between 6000-7000 rpm. Even at just 3000 rpm the Cat Cams pick up over 10 bhp, highlighting the road friendly nature of the cams design.

Crucially, for a fast road cam profile, the 206 GTi 180’s torque curve transformed too by Cat Cams work, with gains of 20 lb.ft at 3250 rpm and a peak gain of 10 lb.ft. But the numbers only tell half the story, as the shape of the torque curve is transformed, making the engine feel much more eager, particularly at high revs.

The Cat Cams Peugeot 206 GTi 180 ‘Sport’ cam profiles carry the following technical specification:-

Part no Duration Duration Max Valve Lift Description
@ 0.1 mm+cl @ 1.0 mm+cl
4901804 256° / 256° 228°/ 228° 10.75 / 10.75 mm Fast Road Sport

The Cat Cams 4901804 profiles are priced at £527.12 excluding VAT and are available now, from all Cat Cams dealers including Pug1off.

Please note: owners of the Citroen C4 VTS seeking extra performance can also benefit from fitting the Cat Cams 4901804 profiles as these cars also run the EW10J4S engine.




New profiles for highly tuned VAG 2.0-litre TFSI engines, proven to gain over 70 bhp
New profiles for highly tuned VAG 2.0-litre TFSI engines, proven to gain over 70 bhp
New profiles for highly tuned VAG 2.0-litre TFSI engines, proven to gain over 70 bhp!

Steel billet 7602002 cams for big turbo 2.0-litre TFSI engines
Dyno proven to gain 72 bhp and 38 lb.ft of torque
Runs on stock lash adjusters but requires Cat Cams / PAC valvesprings and retainers, plus pocketed pistons
Belgian automotive valvetrain specialist Cat Cams NV is delighted to announce a significant new product release a pair of performance cams for VAG’s, four-cylinder, 2.0-litre TFSI direct injection turbocharged engine, as used in the VW Golf GTi, Scirocco and the Audi A3.

Producing a pair of cams for VAG’s TFSI engine presented Cat Cams with numerous technical challenges, largely because of the trapezoid shaped lobe that’s required at the end of the inlet cam to drive the engine’s direct injection fuel pump. Produced from top quality steel billets, the end results of Cat Cam’s development process is a pair of cams that are compatible with the original VAG TFSI direct injection system.

The first VAG 2.0 TFSI profile released by Cat Cams is designed to be used on highly tuned versions of the engine – described as a ‘Stage 3’ engine profile.

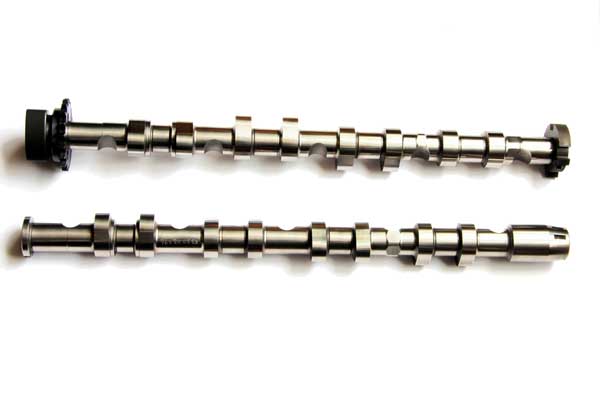

Carrying part number 7602002, technical details on the Cat Cams TFSI ‘Stage 3’ profiles are as follows:-

Part no Duration Duration Max Valve Lift Description
@ 0.1 mm+cl @ 1.0 mm+cl
Standard 231 / 258° 190 / 211° 10.75 / 10.00 mm OEM
7602002 270 / 223° 223 / 215° 11.75 / 11.00 mm Stage 3


The ‘Stage 3’ Cat Cams 7602002 profiles are designed to run with the standard VAG lash adjusters, but PAC-D99864 dual valvesprings are required, as are upper and lower retainers (part numbers 99423 / 99503 respectively.) In addition, the additional valve lift means that pocketed pistons must be used, forged JE Pistons are available from Cat Cams to suit.

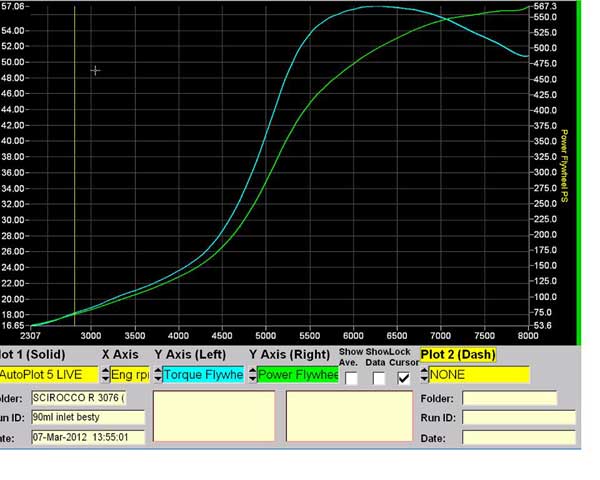

Before and after dyno testing has proven that the Cat Cams 7602002 ‘Stage 3’ profiles adds a stunning 72 bhp and 38 lb.ft of torque to suitably modified engines (see before and after dyno curves.) The specification of the test car was as follows:-

Scirocco R, 2.0-litre TFSI, 90mm induction kit, large alloy intercooler, Garrett HTA3076R turbo running 1.67 bar of boost, custom exhaust manifold, forged pocketed pistons, RS4 fuel injectors, Cat Cams 7602002 profiles, PAC-D99864 dual valve springs, 99423 / 99503 upper & lower retainers

Priced at £827.20 excluding taxes, the Cat Cams 7602002 ‘Stage 3’ profiles for highly tuned versions of the VAG 2.0-litre TFSI engine are on sale now. Further versions of the Cat Cams for milder specification 2.0-litre TFSI engines are currently undergoing development and testing, for release later in 2012.

Catcams Stage 3 TFSI




Peugeot 306 GTi-6 & Rallye owners add over 25 bhp with Cat Cams
Peugeot 306 GTi-6 & Rallye owners add over 25 bhp with Cat Cams

***** Update*****

Following on from the results below, Pug1off re-tested the 4903106 profile on another car just to check the results.

This time the engine already had a 'Piper' Inlet only camshaft and made 178bhp on RS Tuning's rolling road.

After the initial test the cams were replaced with a pair of 4903106 Catcams and remapped to suit.

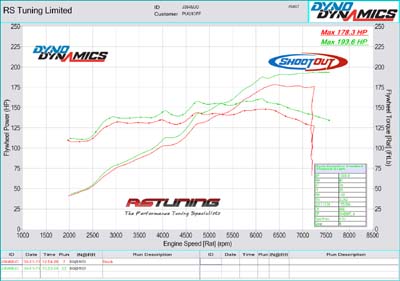

The final results are 193bhp with gains from 2000rpm over the previous setup!


Catcams 4903106 Gti-6 193bhp

The owner reports this has transformed the way the car drives.





With 167 bhp from the factory and an entertaining, capable chassis, the Peugeot 306 GTi-6 and

Rallye models have acquired something of a cult status as great all round fast road and trackday hot hatches.


But even the best can be improved upon, which is where leading high performance valvetrain

specialist Cat Cams NV comes in, with its 4903106 profiles. A direct replacement for the

comparatively mild standard factory XU10J4RS cams, the full technical specification of the

Cat Cams 4903106 profiles is:-



partnr.

duration

duration

maximum lift

parts

application

Click for datasheet

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]


4903106

267 / 259°

228 / 224°

10.95 / 10.40mm



Fast Road Sport

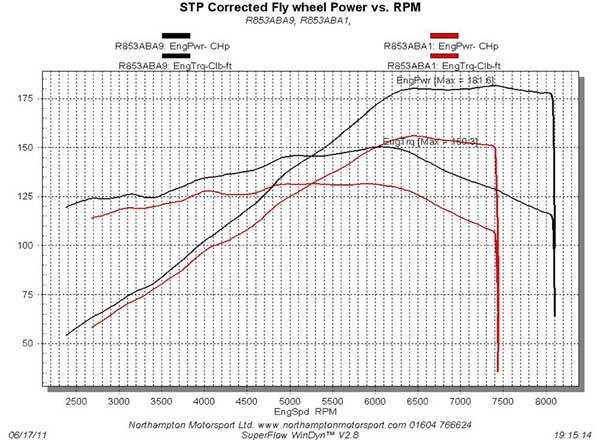

Back to back dyno testing on Northampton Motorsport’s dyno by Peugeot specialist Pug1off has

shown (when used in conjunction with a suitable ECU remap) that the Cat Cams 4903106 profiles

produce exceptional power gains, in this case 26 bhp.


Crucially, both power and torque are improved throughout the rev range, with a 17 lb.ft peak torque

increase and 10-12 lb.ft extra at 4500 rpm, making this an ideal fast road upgrade.


During testing the peak power increased to 181 bhp at 7500 rpm, with over 175 bhp available from 6100 – 8000 rpm.

(NOTE: The stock car seemed down on power, producing 155 bhp but this could be as a result of the 145,000 mileage.)


As a result of the Cat Cams / Pug1off ECU remap package, peak torque increased to 150 lb.ft on the high mileage test car.


Available now from Cat Cams stockists, the 4903106 profiles for the XU10J4RS engine used in the








Cat Cams launches new MINI Cooper S R56 profiles which gain over 10 bhp
Cat Cams launches new MINI Cooper S R56 profiles which gain over 10 bhp
New ‘Sport’ profiles for the 2007 onwards R56 MINI Cooper S turbo
High lift / short duration design to maximise torque and power
Dyno proven to add over 10 bhp at peak on stock ECU map
Optimised increases in lift and duration yet retains good idle quality
CNC ground from new steel billets, direct swap for BMW originals
Available now from Cat Cams UK priced at £615.12 excluding VAT

MINI’s have always been a tuning favourite and so Belgian performance
valvetrain specialist Cat Cams NV is delighted to announce the launch of
a set of fast road ‘Sport’ cams for the R56 MINI Cooper S.

Suitable for both the 175 bhp and 181bhp versions car using the 1.6-litre
direct injection, valvetronic turbocharged engine, the new Cat Cams MINI
Cooper S cam profiles have been extensively tested by Beek Auto Racing
in Holland.

Back to back dyno runs show that as a straight swap against the standard
BMW profiles with the stock ECU settings and the cams timed in on the
original marks - the Cat Cams gained over 10 bhp on a JCW MINI Cooper S,
with useful power increases from 4000 rpm right through to the rev limiter.

Further testing by Beek Auto Racing with an ECU remap optimised to suit
the revised Cat Cams profiles delivered superb increases from 2000 rpm
upwards, gaining 17-18 bhp in the mid-range and 15 bhp at peak.
Maximum recorded power was a heady 245 bhp at 6000 rpm, making
this one fast MINI Cooper S.

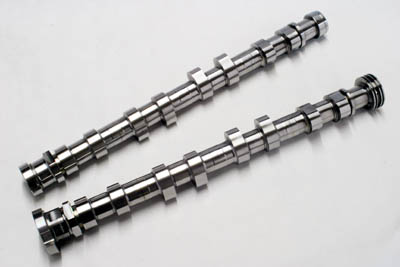

The Cat Cams BMW MINI R56 profiles carry the following technical specification:-


Produced from raw steel billets and CNC ground to ensure quality and
consistency, the new Cat Cams profiles for the R56 MINI Cooper S
turbo are available now directly from Cat Cams UK and all good
engine builders / tuners, priced at £615.12 excluding VAT.











Gain 20 bhp at the wheels on the  Hyundai Coupe with a pair of Cat Cams
Gain 20 bhp at the wheels on the Hyundai Coupe with a pair of Cat Cams

Gain 20 bhp at the wheels on the Hyundai Coupe with a pair of Cat Cams



New Sport profiles designed for 2.0-litre 137 bhp Hyundai Coupe (96-02)

High lift / short duration design to maximise torque and power

Direct replacement for Hyundai originals

Dyno proven to add up to 20 bhp at wheels with piggyback ECU

Optimised increases in lift and duration yet retains good idle quality

CNC ground from new steel billets

Available now from Cat Cams UK priced at £519.20 excluding VAT

The sleek Hyundai Coupe has a cult following in the UK, as it packs a tempting combination of low running costs, punchy performance and great looks. But with just 137 bhp on tap at best from the 1996-2002 models, few would argue the car would benefit from some increased urge.

And now Belgian based Cat Cams NV has the answer, in the shape of a new pair of cam profiles for the Hyundai coupe, which boast the following technical specification:-

partnr.

duration

duration

maximum lift

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]

(TURBO)

2700803

254 / 248°

220 / 212°

10.15 / 10.00mm

O.E.M.

Fast Road Sport

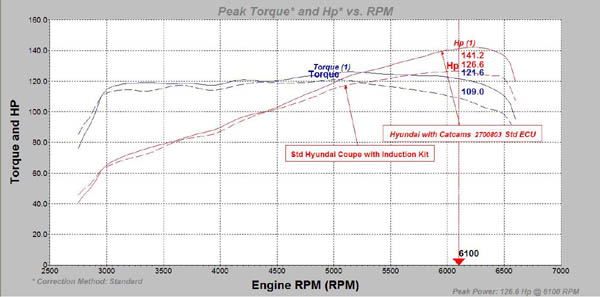

Dyno testing of the 2700803 profile has proven that these Cat Cams, in combination with a piggyback ECU, add 20 bhp at peak, with power and torque gains throughout the rev range from 2700 – 6500 rpm (see attached dyno sheet.)

Produced from high quality CNC ground steel billets, the Cat Cams 2700803 Sport profiles are a straight swap for the original Hyundai camshafts and are directly compatible with the engine’s original hydraulic followers

Priced at just £519.20 excluding VAT, the Cat Cams 2700803 profiles for the 2.0-litre, 16-valve Hyundai Coupe are available now, directly from Cat Cams UK and all good engine builders / tuners.


Catcams Hyndai Steel Billets





Get the ultimate fast road cams for 206 GTi 180
Get the ultimate fast road cams for 206 GTi 180
Get the ultimate fast road cams for 206 GTi
180 dyno proven to gain 14 bhp

• New ‘Sport’ profiles for the 2003-2006 Peugeot 206 GTi 180
• High lift / short duration design to maximise torque and power
• Dyno proven to add over 14 bhp in conjunction with ECU remap
• Optimised increases in lift and duration yet retains good idle quality
• CNC ground from chilled cast blank / steel billet combination
• Direct replacement for original Peugeot items
• Available now from Cat Cams UK priced at £527.12 excluding VAT, carrying
part number 4901804
Here at Cat Cams NV, we’re always looking to make things better. To improve. To go
beyond standard, to deliver the performance that you desire and deserve.
Hence why Cat Cams NV is pleased to launch a set of no-compromise fast road
sport profiles for the Peugeot 206 GTi 180, which uses the 1997cc EW10J4S engine.
Designed to deliver a noticeable gain in performance throughout the rev range, while
retaining everyday usability, Cat Cams’ technicians have analysed the valvetrain in
the 180’s VVT engine and produced a pair of camshafts that are significantly better in
every respect.
Cat Cams is the only cam designer offering profiles for the 206 GTi 180. Why?
Because the EW10J4S engine incorporates variable valve timing (VVT) on the inlet
cam, meaning that Cat Cams NV has to produce the inlet profile from steel billet,
while the exhaust cam is manufactured from a chill cast blank. This makes it
relatively difficult to produce, but once again, Cat Cams has risen to the challenge!

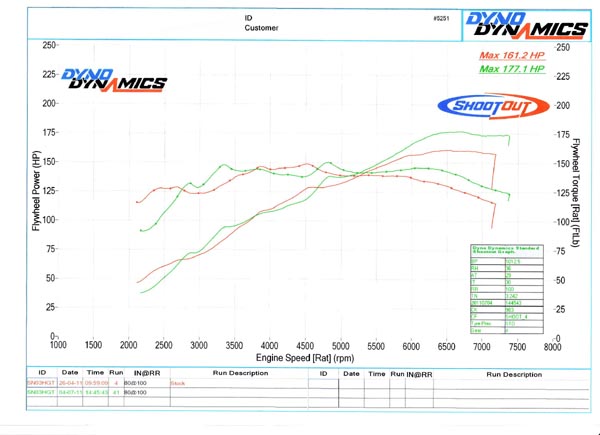

Back to back dyno testing conducted by Peugeot specialist Pug1off at Northampton
Motorsport’s chassis dyno confirmed that in conjunction with an ECU remap, the Cat
Cams Sport 4901804 profiles for the 206 GTi 180 gain power and torque throughout
the rev range, from just 2750 rpm upwards.
Peak power increases by 14 bhp at 7250 rpm, with gains of 17-18 bhp over standard
between 6000-7000 rpm. Even at just 3000 rpm the Cat Cams pick up over 10 bhp,
highlighting the road friendly nature of the cams design.
Crucially, for a fast road cam profile, the 206 GTi 180’s torque curve transformed too
by Cat Cams work, with gains of 20 lb.ft at 3250 rpm and a peak gain of 10 lb.ft. But
the numbers only tell half the story, as the shape of the torque curve is transformed,
making the engine feel much more eager, particularly at high revs.
The Cat Cams Peugeot 206 GTi 180 ‘Sport’ cam profiles carry the following technical
specification:-

partnr.

duration

duration

maximum lift

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]

(TURBO)

4901804

256 / 254°

228 / 228°

10.75 / 10.75mm

O.E.M.

Fast Road Sport



The Cat Cams 4901804 profiles are priced at £527.12 excluding VAT and are
available now, from all Cat Cams dealers.
Please note: owners of the Citroen C4 VTS seeking extra performance can also
benefit from fitting the Cat Cams 4901804 profiles as these cars also run the
EW10J4S engine.





New Cat Cams profiles for the 125 bhp variant of the Citroen C2
New Cat Cams profiles for the 125 bhp variant of the Citroen C2

New Cat Cams profiles for the 125 bhp variant of the Citroen C2 VTS



  • Dyno proven to add up to 12 bhp and 8lb.ft of torque at wheels in conjunction with ECU remap or piggy back unit

  • CNC ground from top quality chilled castings

  • New ‘Sport’ profiles designed for everyday fast road use

  • Mild increase in lift and duration, retains factory idle quality

  • Directly compatible with original Citroen hydraulic followers

  • Time perfectly on std Cam pulleys, no need for Vernier pulleys to be fitted

  • Available now from Cat Cams UK priced at £428.85 including VAT @ 17.5%


Belgian based performance valvetrain specialist Cat Cams is delighted to launch a new pair of ‘Sport’ profiles for the late model Citroen C2 VTS,

running the 125 bhp 1.6-litre, 16-valve DOHC engine.


These VTS badged cars, produced between 2008 and 2009, use sharper cam profiles as standard compared to the 110 bhp VTR / GT versions

of the C2 and this specially enhanced version of the TU5JP4-S powerplant is identified by its alloy inlet manifold.


Following detail design studies and back to back dyno testing, Cat Cams have optimised a profile that both enhances mid range and top end performance,

while retaining a street friendly idle.


Technical details on the Cat Cams Citroen C2 VTS 125 bhp Sport profiles are as follows, shown in comparison to the original factory cams:-


partnr.

duration

duration

maximum lift

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]

(

OEM

248 / 240°

206 / 200°

9.00 / 8.70mm

O.E.M.

STD

1323703

248 / 240°

220 / 212°

9.50 / 9.15mm

O.E.M

Fast Road



Carrying part number 1323703, the Cat Cams ‘Sport’ profiles for the 125 bhp Citroen C2 VTS feature modest increases in valve lift and

duration to deliver a robust performance gain without upsetting low speed running and everyday driveability.


A direct swap for the standard C2 VTS camshafts, the Cat Cams 1323703 profiles are CNC ground from fresh castings and are directly

compatible with the standard Citroen hydraulic followers.

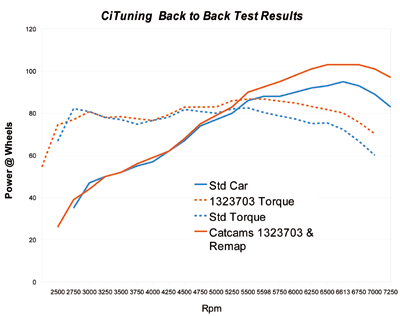

When used in conjunction with an ECU remap (or piggyback ECU) to optimise the air / fuel ratio, testing by Nottingham based Citroen

specialist Cituning proves that – in conjunction with an ECU remap - the Cat Cams 1323703 profiles deliver a peak power increase of

up to 12 bhp @ 6500 rpm. Similarly, torque increases by 8lb.ft at 6000 rpm. These figures were recorded at the wheels, please see attached dyno plot.


Priced at just £428.85 including VAT @ 17.5%, the Cat Cams 1323703 profiles for the Citroen C2 VTS are on sale now.


For further information and sales advice please contact Cat Cams UK or your nearest Cat Cams dealer.

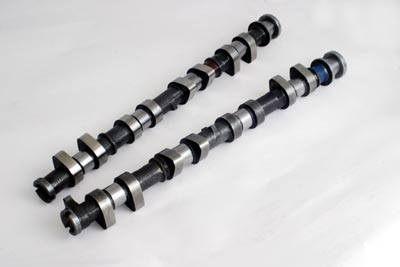

New Cat Cams Ford Duratec ST170 VVT delete profiles deliver impressive gains
New Cat Cams Ford Duratec ST170 VVT delete profiles deliver impressive gains

New Cat Cams Ford Duratec ST170 VVT delete profiles deliver impressive gains

  • New Cat Cams non-VVT cam profiles for track day / rally use

  • High lift / short duration format to maximise torque and power

  • Precision CNC ground from new steel billets

  • Designed to work with original Ford mechanical valve gear

  • Original front camshaft seals (which is normally fitted around the VVT sprocket)

  • can be maintained thanks to a clever billet design

  • Drop in profile with no piston to valve clearance issues

  • Cat Cams adjustable pulleys required due to VVT deletion

  • Designed to work with carburettors or independent throttle bodies

  • Dyno proven to produce 207 bhp / 177 lb.ft of torque

  • Ideal for track day and kit car applications

  • Priced at £643.81 including VAT @ 17.5%, part number 2301013

  • Contact Cat Cams UK on 0845 51 95 720


Ford’s 2.0-litre Duratec ST170 engine still has many fans, particularly for its ability to readily mate up to popular off the shelf rear wheel drive Ford transmissions.

Hence why Belgian performance valvetrain specialist Cat Cams is pleased to launch a new pair of profiles for track day or rally use, which are designed to work in

conjunction with either carburettors or independent throttle bodies.


Precision CNC ground from high quality, motorsport style steel billets, Cat Cam’s designers have leveraged their experience with BTCC and WTCC engines to

deliver a pair of profiles that deliver significant improvements in power and torque, while dispensing with the ST170’s variable valve timing (VVT) system, which

is superfluous for track day / motorsport use. However clever design work by Cat Cams allows the retention of the stock Ford front camshaft oil seals, which

normally fit around the Ford VVT drive sprockets.

The technical details of Cat Cam’s Focus ST170 Duratec profiles are:-


partnr.

duration

duration

maximum lift

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[-]

(TURBO)

2301013

274 / 264°

240 / 232°

11.75 / 11.25mm

O.E.M.

Track Day/Rally


The new Cat Cam’s 2301013 profiles are a direct swap for the original Ford items and are totally compatible with the standard ST170 mechanical valve gear.

And they really deliver, as recent dyno testing at Sussex based Devil Developments proved, when a Caterham running a standard ST170 motor with the

Cat Cams 2301013 profiles and 45mm throttle bodies produced an impressive 207 bhp @ 6800 rpm, allied to 177 lb.ft of torque at 5500 rpm.

The spread of torque produced by the Cat Cams is equally notable, with over 160lb.ft available from 3700 rpm to 6700 rpm, highlighting the driveable nature of the profile.


Priced at £643.81 including VAT @ 17.5%, the Cat Cams 2301013profiles are available now directly from Cat Cams UK and from your nearest Cat Cams dealer.


The adjustable alloy pulleys (which are required because the Ford VVT mechanism is built into the inlet cam) carry part number CTF0170, priced at £257.95 including VAT @ 17.5%.






306 GTi-6 Race Engine results
306 GTi-6 Race Engine results
This is from Matt Jobling at Pug1off who has built this awesome XU10J4RS race engine here.
Over 300 bhp at 9000 rpm plus, this beats other cam profiles that Pug1off has tried by some considerable margin.
What's the engine going to be used in? A 205 of course!





Cat Cams launches fast road profiles for 137 bhp Peugeot 206 GTi gains up to 23 bhp  and 24 lb.ft of torque
Cat Cams launches fast road profiles for 137 bhp Peugeot 206 GTi gains up to 23 bhp and 24 lb.ft of torque

Cat Cams launches fast road profiles for 137 bhp Peugeot 206 GTi gains up to 23 bhp and 24 lb.ft of torque

  • New ‘Sport’ profiles designed for everyday fast road use

  • Mild increase in lift and duration, retains factory idle quality

  • CNC ground from top quality chilled castings

  • Directly compatible with original Peugeot hydraulic followers

  • Dyno proven to add up to 23 bhp and 24 lb.ft when used with custom ECU remap or piggy back ECU unit

  • Available now from Cat Cams UK priced at £475.87 including VAT @ 17.5%

It may not have caught the public’s imagination in the same way as the revered 205 GTi, but Peugeot’s 206 GTi seems to attract a loyal following, mainly because of their affordable pricing, availability and potential for modifications.


But with just 137 bhp on tap from its 1997cc EW10J4 engine, few would deny that the 1125 kilo 206 needs added urge to help it live up to the expectations of a GTi badge.


That said, the biggest problem with upgrading the 206 GTi at present is that there’s a huge gap in the engine tuning market between an affordable remap and an expensive, noisy and uneconomical independent throttle body conversion – something that Cat Cams is seeking to try and fill, with its ‘Sport’ fast road cam profiles for the EW10J4 motor.


Designed as a profile for everyday driving in all conditions, the Cat Cams ‘Sport’ cams – part number 4901613 - are produced with modest increases in valve lift and duration, in order to strike the right balance between driveability and performance. Cat Cams has also placed a great emphasis on ensuring that the standard road friendly idle characteristics are maintained.


Technical details on the Cat Cams Peugeot 206 GTi Sport profiles are as follows, shown in comparison to the original factory cams:-


Part no

Duration

Duration

Max Valve Lift

Description


@ 0.1 mm+cl

@ 1.0 mm+cl



4901613

248 / 240

219 / 211

9.50 / 9.15 mm

Sport – Fast Road






OEM

245 / 240

207 / 202

8.70 / 8.20 mm

Standard 206 GTi


A straight swap for the original equipment 206 GTi camshafts, the Cat Cams 4901613 profiles are CNC ground from fresh castings and are directly compatible with the standard Peugeot hydraulic followers.


Dyno testing has proven that in conjunction with an ECU remap (or piggyback ECU) to optimise the air / fuel ratio, the Cat Cams 4901613 profiles deliver a peak power increase of up to 23 bhp at just 5500 rpm.

Combined with the retention of the 206 GTi’s much praised low speed torque, the Cat Cams profiles greatly extend the cars usable power band, making the Peugeot not only noticeably quicker, but considerably more user friendly as well. Peak torque increases by up to 24 lb.ft up to 165 lb.ft, with over 150lb. ft available from 3750 to 5500 rpm, making the cams ideal for relaxed, rapid, fast road use.


And this extra performance is designed to be accessible to all Peugeot 206 GTi fans, so the Cat Cams 4901613 profiles are priced at just £475.87 including VAT @ 17.5%. For further information and sales advice please contact Cat Cams UK or your nearest Cat Cams dealer.


NOTE: These profiles also suit the 2.0-litre EW10J4 powered Citroën Xsara and C4, plus the Peugeot 206 CC, 206 GT and the 307 Sport.


An alternative pair of ‘Sport’ profiles, designed for the track day market and carrying part number 4901614 is also under development. They will be launched into the UK market in the next 2-3 months, featuring extra lift and duration on the inlet cam for increased top end power.

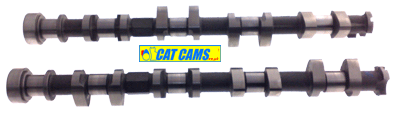

Cat Cams unveils bespoke profiles for 2.0 Silvertop Zetec turbo engines
Cat Cams unveils bespoke profiles for 2.0 ‘Silvertop’ Zetec turbo engines

Cat Cams unveils bespoke profiles for 2.0 ‘Silvertop’ Zetec turbo engines

  • New bespoke cam profile designed for Zetec aftermarket turbo conversions

  • Designed to maximise performance for forced aspiration use

  • Shorter exhaust duration to improve turbo spool up

  • Carries part number 2290114

  • CNC machined from top quality chilled casting

  • Directly compatible with original Zetec hydraulic followers

  • Dyno proven to transform midrange torque and driveability.

  • Available now from Cat Cams UK priced at £428.85 including VAT @ 17.5%

  • Developed in conjunction with Devil Developments

Turbo charging has long been a favoured route for tuners with the 2.0-litre ‘Silvertop’ Ford Zetec engine, as it delivers potentially large power gains as relatively low cost.


However one of the problems of bolting a turbo onto an engine originally designed as a normally aspirated unit is that the original camshafts are optimised for a standard non-turbo motor. Conversely, turbo engines have different cam timing requirements, so if the original cams are retained, ultimate performance will be compromised.


And the Ford Zetec is no exception, so, responding to demand, Belgian based performance valvetrain specialist Cat Cams has produced a set of profiles specifically designed for Zetec turbo use, tested in conjunction with Devil Developments of Littlehampton, Sussex.


Carrying part number 2290114, the profiles are designed with higher lift than the standard Zetec profiles and with greater duration on the inlet profile. On the exhaust side, the duration is reduced slightly to aid turbo spool up, greatly increasing response and mid-range torque.


Technical details on the Cat Cams Ford Zetec turbo profiles are as follows:-


Part no

Duration

@ 0.1mm+cl

Duration

@ 0.1mm+cl

Max Valve Lift

Description

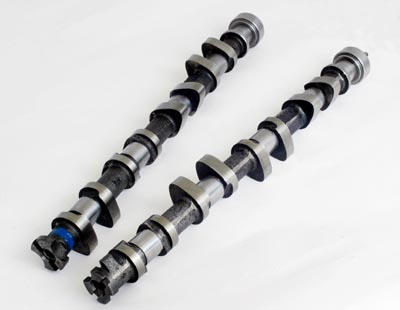

2290114

256 / 247°

230 / 212°

10.00 / 8.70 mm

Turbo, fast road


A like for like swap with the standard camshafts, the Cat Cams Ford Zetec turbo profiles are directly compatible with the standard Ford hydraulic valve gear. Back to back dyno testing has shown an 11 bhp improvement in peak power, with gains of up to 25 lb.ft of torque in the mid-range.


Priced at £428.85 including VAT @ 17.5%, the Cat Cams Ford Zetec turbo profiles are available now from Cat Cams UK.


As can be seen from the graph below. The mid range torque has been transformed. On the run with the new cams the boost pressure had dropped to 7psi (from 9psi on the std cams). If the wastgate had been tweaked to restore the boost pressure we would have expected to see approx 270bhp.


On the final run, with 14PSI of boost, the engine made just under 350bhp. Thats 100bhp more than when it arrived and the owner is very pleased with the results.

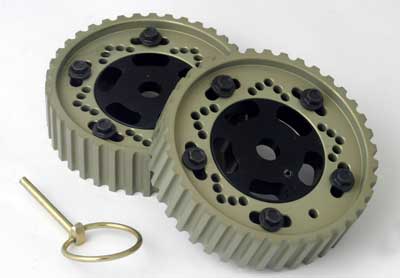

TrueLock Vernier Pulleys for Citroen C2
TrueLock Vernier Pulleys for Citroen C2
Truelock alloy pulleys from Cat Cams the easy way to optimise timing on the

Citröen C2 VTS and more!


• New lightweight, super strong alloy adjustable cam pulleys

• Designed for 110 bhp 1.6-litre Citröen / Peugeot 16-valve TU5JP4/L4

motor used in C2 VTS and Peugeot 206

• Easily adjustable in one degree increments over plus or minus 10

degrees using unique ‘pin and hole’ system

• Locking between inner and outer section of pulley is provided by five

8mm long lasting bolts rather than allen nuts of rival products

• Machined from high quality 7075 aluminium

• Outer wheel is hard anodised to provide years of wear resistance

• Log onto www.catcams.co.uk or telephone 0845 51 95 720



Advancing or retarding the cam timing is a well known technique used by engine builders to optimise the power and torque characteristics of any engine. Now Belgian performance valvetrain specialist Cat Cams is delighted to announce a new addition to its range of adjustable cam pulleys, for the popular 110bhp TU5JP4 1.6-litre 16-
valve engine used in the popular Citröen C2 VTS and the Peugeot 206.

Cat Cam’s True Lock adjustable cam pulleys offer a number of advantages over the traditional ‘vernier’ style items offered by rival companies. Primarily they are vastly more user friendly and accurate than traditional vernier pulleys. That’s because while rival designs rely on a sliding vernier scale to indicate how much cam advance or
retard has been dialled in, the True Lock pulleys use a unique, fool proof and considerably easier ‘pin and hole’ system.

The system is simple in operation – around the face of the True Lock pulley is a series of drilled holes representing one degree of cam advance or retard. Users simply have to undo the securing bolts, then rotate the two parts of the pulley until the supplied alignment pin slides into the desired hole. The pulley is then bolted back together, the locking pin is removed and the user can be confident that the cam timing is set accurately, without the need to align hard to see vernier scales. And with plus or minus ten degrees of advance and retard available, there is plenty of scope for serious adjustment.

Cat Cam’s True Lock pulleys also offer far greater strength than conventional vernier pulleys, because rather than relying on three easily rounded off allen screws for securing the two parts of the pulley, the True Lock pulleys use five 8mm bolts to provide a robust fixing mechanism that’s rigid and secure for very high torque
outputs.

This strength is also reflects on the materials used for the True Lock pulleys – they are machined from top quality 7075 aluminium billets and the outer cam wheel is hard anodised to ensure durability.

Cat Cam’s True Lock pulleys for the TU5JP4/L4 motor are available from all Catcams Dealers priced at £219.54 + Vat


Existing versions are also available for Peugeot 106 GTi and Citröen Saxo VTS.

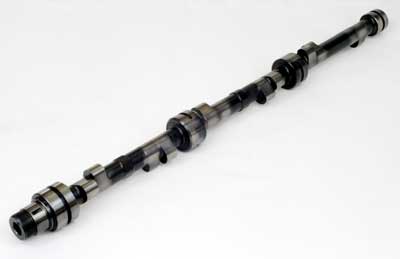

New Turbo Profile for BMW M20  engine
New Turbo Profile for BMW M20 engine

Cat Cams launches new turbo specific profile for popular M20 engine

BMW

New bespoke profile for aftermarket turbo applications

High lift / short duration profile to maximise torque and power

Shorter exhaust duration to promote rapid turbo spool up

CNC ground from new chilled blank casting

Designed to work with original BMW mechanical valve gear

Suitable for all 2-valve M20 small six engines 2.0 to 2.7-litres

Priced at £265.28 + Vat

Available from all Cat Cams dealers

Contactwww.catcams.co.ukor telephone 0845 51 95 720

BMW’s legendary small block six cylinder M20 engine is renowned for its strength and tuneability, so despite being out of production since 1994, demand for performance parts remains strong.


Which is why Belgian cam manufacturer Cat Cams has responded to market demands and launched a brand new ‘drop in’ performance cam profile for the 2-valve BMW M20 six cylinder engine, designed specifically for aftermarket turbocharger applications with all available capacity formats, from 2.0 to 2.7-litres.


Cat Cams has pioneered the use of high lift / short duration designs throughout motorsport, including the BTCC, European Rallycross and Moto GP. In this particular instance the requirements of an aftermarket turbocharger conversion mean that Cat Cams has focussed efforts on developing a profile that promotes rapid turbo spool up, hence the exhaust duration and lift are reduced in comparison to the four other profiles in Cat’s BMW M20 cams range.


The technical details of Cat Cam’s BMW M20 turbo profile are:-



partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)

1300533

272 / 248°

234 / 214°

10.85 / 9.90mm

1.90 / 0.70mm

O.E.M.

MECH: sport


Cat Cam’s new M20 turbo profile is a true ‘drop in’ fitment, being CNC ground from a chilled cast iron blank to the same base circle dimensions as the original BMW camshaft, so it’s directly compatible with the original BMW mechanical valve gear.


Other Cat Cams BMW turbo profiles are also available from the extensive Cat Cams profile range








Cat Cams delivers more power for the Clio 197 with latest fast road cam launch
Cat Cams delivers more power for the Clio 197 with latest fast road cam launch

Cat Cams delivers more power for the Clio 197 with latest cam profile launch

Belgian performance camshaft manufacturer Cat Cams is delighted to announce the launch of a new fast road ‘Sport’ cam profile for the popular RenaultSport Clio 197.


Developing a cam profile for the Clio 197 F4R 830 engine is something of a challenge because the valve to piston clearance is minimal, limiting the extra amount of lift available to extract additional performance.


Designed using unique, in-house developed software, the end result of Cat Cams work is a pair of mild negative radius ‘Sport’ profiles manufactured from bespoke, hollow steel billets and CNC ground to ensure accuracy.


These ‘Sport’ profiles are a direct replacement for the original units as well as being compatible with the Renault factory hydraulic followers and variable valve timing system. Ideally suited to Clio 197 engines using the stock ECU and inlet plenum, Cat Cam’s ‘Sport’ profiles retain decent idle quality and the driveability needed for fast road use.


Cat Cams has also incorporated an adjustable cam position sensor ring on the inlet camshaft, enabling easy timing adjustment without having to alter the cambelt position.


Initial dyno results show that Cat Cams Sport profiles produce a minimum of 5 bhp and 5lb.ft of torque, running in conjunction with the factory inlet and ECU.


The new Clio 197 ‘Sport’ cams carry the part number 5504402 and are available now, priced at £686.06 + Vat and delivery. For motorsport users five additional rally, rallycross and race profiles have been launched at the same time.

Cat Cams RenaultSport Clio 197 Technical Specification

partnumber

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]


5504402

268 / 263°

234 / 227°

11.50 / 10.85mm

0.05 / 1.35mm

O.E.M.

Fast Road



Click here to buy







More power for your Ford Zetec motor with Cat Cams new race and rally profiles
More power for your Ford Zetec motor with Cat Cams new race and rally profiles

More power for your Ford Zetec motor with Cat Cams new race and rally profiles

Belgian performance camshaft manufacturer Cat Cams has launched a range of profiles designed for the motorsport market, covering 1.6, 1.8 and 2.0-litre variants of the Zetec E / Zetec MGA engine, as used in the Cougar, Escort, Fiesta, Focus and Mondeo.


Designed using unique, in-house developed software, the end result of Cat Cams work is a range of race and rally profiles manufactured from chilled iron castings and CNC ground to ensure accuracy.


Cat Cams has pioneered the use of high lift / short duration profiles, enabling engines to produce an unmatchable spread of torque and excellent power characteristics and this technique is used to create the new Zetec profiles.


Available in the UK through Quality Engineered Products (QEP,) the new Ford Zetec race and rally cams are available now, priced at £364.98 + Vat



partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)

2290310

266 / 265°

230 / 224°

10.45 / 9.30mm

2.00 / 0.60mm

custom

MECH:Turbo

2290303

281 / 273°

256 / 248°

11.25 / 10.80mm

3.15 / 2.70mm

custom

MECH: rally & race

2290306

282 / 266°

255 / 242°

11.80 / 11.05mm

3.75 / 3.05mm

custom

MECH: rally & race

2290308

285 / 277°

252 / 243°

12.50 / 12.00mm

3.80 / 3.30mm

custom

MECH: rally & race

2290304

293 / 281°

265 / 256°

11.65 / 11.25mm

4.00 / 3.55mm

custom

MECH: rally & race

2290307

291 / 282°

266 / 255°

12.50 / 11.80mm

4.45 / 3.75mm

custom

MECH: rally & race







Get 21st century style power, torque and reliability with Cat Cams new Ford Pinto performance cam, pulley and coated follower kit
Get 21st century style power, torque and reliability with Cat Cam’s new Ford Pinto performance cam, pulley and coated follower kit

Get 21stcentury style power, torque and reliability with Cat Cam’s new Ford Pinto performance cam, pulley and coated follower kit

  • Brand new cam profile range for popular Ford SOHC Pinto engines from 1.3 to 2.0-litres (and beyond)


  • Very latest ‘snub’ nosed cam profile designs that maximises valve lift to improve torque spread and top end power


  • Eleven profiles available, covering fast road, rally and full race


  • All Cat Cams profiles are CNC ground from fresh chilled cast blanks


  • Full race profiles have been proven in UK short oval racing in 2008


  • Cam followers are produced to super accurate design to ensure correct geometry at valve stem


  • Unique Balinit C® coating on cam followers eliminates Pinto cam wear problem by greatly reducing mechanical friction in key areas


  • Cat Cam’s Pinto cam kit includes:

Cat Cams camshaft; new Balinit C® coated cam followers; NASCAR quality PAC Gold Series single valve springs (where required) and Truelock adjustable cam pulley, costing just £457 + Vat


  • Alloy valve spring retainers are available as a cost option


      Belgain based Cat Cams, is delighted to launch a brand new range of performance camshaft kits designed for the popular SOHC Ford Pinto engine, in capacities from 1.3 to 2.0-litres. Cat Cam’s new Pinto kits are comprehensive, including Balinit C® coated cam followers and NASCAR quality PAC valve springs (where required.)

      Although the Pinto engine design dates back to the 1960’s, through the application of 21stcentury cam design techniques and state of the art coatings technology, Cat Cams is confident that its new cam kit range can deliver an unrivalled spread of torque, combined with excellent top end power and superb reliability.

      Eleven profiles are available, from a mild fast road grind to all out race cams, sharing the same design principles of high lift and short duration that have been successfully proven throughout motorsport, including the BTCC, European Rallycross and Moto GP. Forced induction fans will also be pleased to hear that a bespoke Pinto turbo profile is also part of the new range, running a bespoke exhaust profile to help ensure rapid turbo spool up.

      Each Cat Cam Pinto profile is CNC ground from a high quality chilled cast iron blank to ensure accuracy and consistency. Similarly, the design of Cat’s Pinto cam follower is true to the original Ford blueprints, enabling Cat Cams to produce new followers that are checked on a computer controlled coordinate measuring machine to ensure the valve geometry is correct.

      Crucially Cat Cams has overcome the traditional Pinto cam wear problem thanks to the application of a state of the art Oerlikon Balzer Balinit C® friction reducing coating (see attached graph) to the cam followers supplied with the kit. Balinit C’s® anti scuff properties mean that even Pinto engines running full race cams simply don’t wear out – this was proven in British short oval racing in 2008.

      Due to the efficiency variations of inlet and exhaust systems Cat Cam’s policy is not to quote performance gains, but increases of 8-10% in power and torque are typical for ‘drop in’ fast road profiles, with much higher gains from the motorsport specific grinds which require other modifications to ensure compatibility.


partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)















2280300

263 / 276°

225 / 236°

10.00 / 10.60mm

1.45 / 1.95mm

custom

MECH: sport

2280301

269 / 281°

233 / 244°

10.75 / 11.35mm

1.90 / 2.45mm

custom

MECH: sport

2280347

281 / 281°

244 / 244°

11.40 / 11.40mm

2.10 / 2.10mm

custom

MECH: sport

2280375

276 / 268°

239 / 230°

10.95 / 10.35mm

2.20 / 0.85mm

custom

Turbo

2280376

295 / 295°

252 / 252°

11.65 / 11.65mm

2.95 / 2.95mm

custom

MECH: rally & cross

2280377

301 / 301°

260 / 260°

12.15 / 12.15mm

3.75 / 3.75mm

custom

MECH: rally & cross

2280367

305 / 305°

259 / 259°

13.15 / 13.15mm

4.10 / 4.10mm

custom

MECH: rally & race

2280368

308 / 308°

262 / 262°

13.15 / 13.15mm

4.45 / 4.45mm

custom

MECH: rally & race

2280369

311 / 311°

266 / 266°

13.15 / 13.15mm

4.65 / 4.65mm

custom

MECH: rally & race

2280378

308 / 308°

268 / 268°

12.70 / 12.70mm

4.75 / 4.75mm

custom**

MECH: rally & race

2280379

319 / 319°

276 / 276°

13.35 / 13.35mm

5.45 / 5.45mm

custom**

MECH: rally & race

      *Denotes turbo specific profile

      ** Requires Gold Series double valve springs and cylinder head machining

      Cat Cams Pinto cam kit Truelock adjustable pulley

      Cat Cams Pinto cam kits also include a Truelock alloy cam pulley. Cat Cam’s True Lock adjustable cam pulleys offer a number of advantages over the traditional ‘vernier’ style items offered by rival companies. Primarily they are vastly more user friendly and accurate than traditional vernier pulleys. That’s because while rival designs rely on a sliding vernier scale to indicate how much cam advance or retard has been dialled in, the True Lock pulleys use a unique, fool proof and considerably easier ‘pin and hole’ system.

      The system is simple in operation – the face of the True Lock pulley features a series of drilled holes representing one degree of cam advance or retard. Users simply have to undo the securing bolts, then rotate the two parts of the pulley until the supplied alignment pin slides into the desired hole. The pulley is then bolted back together, the locking pin is removed and the user can be confident that the cam timing is set accurately, without the need to align hard to see vernier scales. And with plus or minus ten degrees of advance and retard available, there is plenty of scope for serious adjustment.

Catcams Balinit C Coating Test Balinit C Coating Wear Test




Give your 2.0 & 2.3-litre Duratec a boost with Cat Cams as used by Marcus Gronholm!
Give your 2.0 & 2.3-litre Duratec a boost with Cat Cams as used by Marcus Gronholm!

Give your 2.0 & 2.3-litre Duratec a boost with Cat Cams – as used by Marcus Gronholm!

Lightweight, compact and highly tuneable, Ford’s first ‘world’ engine, the I4 Duratec, has already found plenty of fans in both 2.0 and 2.3-litre formats, particularly here in the UK, where the Duratec finds a home in the 150bhp Fiesta ST150 and the 160bhp Mazda MX-5.


Pleasingly the I4 Duratec responds very well to cam swaps, partly because the Mazda designed engine enjoys large ports and valves compared to most modern engines. And it’s this tendency that Belgian based Cat Cams can exploit for those seeking extra power and torque from their I4 Duratec engine for rally, rally cross and race applications, with its new range of motorsport profiles.


Cat Cams has pioneered the use of high lift / short duration profiles, enabling engines to produce an unmatchable spread of torque with excellent power characteristics, whatever the discipline. Indeed such is Cat Cams success with motorsport I4 Duratec profiles, they are used in Marcus Gronholm’s fearsome turbocharged European Rallycross Fiesta ST, which develops 552 horsepower and 600lb.ft of torque!


The full part numbers and technical details of Cat Cam’s new I4 Duratec motorsport cam profile range are:-



partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)

2290609

280 / 274°

243 / 232°

9.75 / 9.30mm

2.50 / 2.35mm

O.E.M.

MECH: rally & race

2290608

279 / 270°

250 / 242°

10.25 / 9.75mm

3.00 / 2.90mm

O.E.M.

MECH: rally & race















2290639

277 / 269°

243 / 236°

12.00 / 11.50mm

3.15 / 2.70mm

custom

MECH: rally & cross

2290640

285 / 277°

252 / 243°

12.50 / 12.00mm

3.65 / 3.20mm

custom

MECH: rally & cross

2290641

293 / 285°

259 / 252°

13.00 / 12.50mm

4.15 / 3.70mm

custom

MECH: rally & race

2290642

307 / 293°

268 / 259°

13.50 / 13.00mm

4.75 / 4.20mm

custom

MECH: rally & race






Fiesta ST150 and beyond - give your 2.0 or 2.3-litre Duratec a boost with Cat Cams new fast road profiles!
Fiesta ST150 and beyond - give your 2.0 or 2.3-litre Duratec a boost with Cat Cams new fast road profiles!

Fiesta ST150 and beyond - give your 2.0 or 2.3-litre Duratec a boost with Cat Cams new fast road profiles!

Lightweight, compact and highly tuneable, Ford’s first ‘world’ engine, the I4 Duratec, has already found plenty of fans in both 2.0 and 2.3-litre formats, particularly here in the UK, where the Duratec is used in the 150bhp Fiesta ST150 and the 160bhp Mazda MX-5.


Pleasingly the I4 Duratec responds very well to cam swaps, partly because the Mazda designed engine enjoys large ports and valves compared to most modern engines. And it’s this tendency that Belgian based Cat Cams can exploit for those seeking extra power and torque from their ST150 or Mazda MX-5, thanks to a new set of ‘Sport’ profiles.


Cat Cams has pioneered the use of high lift / short duration designs, enabling engines to produce an unmatchable spread of torque with excellent power characteristics. Due to set up and engine specification variations Cat Cam’s policy is not to quote performance gains but increases of 8-10% in both power and torque are typical. Two new profiles have been launched, the 2290645 which is designed for use with the stock ECU and the 2290610, which is designed for a stand alone engine management installations, either with the original single plenum, or ITBs.


In both cases, Cat Cam’s Duratec ‘Sport’ profiles are CNC ground to ensure they match the original equipment cam’s base circle, meaning the new cams are directly compatible with the stock Ford mechanical valvetrain.



partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)

2290645

241 / 228°

209 / 196°

9.30 / 8.1mm

0.7 / 0.8mm

O.E.M.

MECH: sport

2290610

265 / 251°

224 / 214°

9.30 / 8.90mm

1.45 / 1.50mm

O.E.M.

MECH: sport

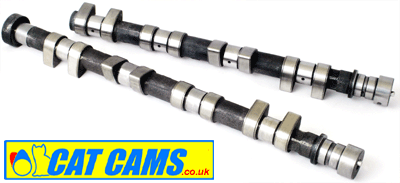

Cat Cams unleashes extra horses for Vauxhall / Opel C20XE engine
Cat Cams unleashes extra horses for Vauxhall / Opel C20XE engine


Cat Cams unleashes extra horses for Vauxhall / Opel C20XE engine

Vauxhall’s legendary C20XE 2.0-litre 16-v engine, also known as the ‘red top,’ is often the choice for tuning or transplant, into cars as diverse as Novas, Mantas and Mk1 Ford Escorts.


Hence why Belgian performance camshaft manufacturer Cat Cams has launched a full range of motorsport profiles for the evergreen C20XE engine, ranging from a rally profile that’s compatible with hydraulic tappets, to full race profiles designed for use with mechanical lifters.

Designed using unique, in-house developed software, Cat Cam’s C20XE profiles are manufactured from blank chilled iron castings and CNC ground to ensure accuracy. These profiles are available in gun drilled steel billet format on request.


Cat Cams has pioneered the use of high lift / short duration profiles, enabling engines to produce an unmatchable spread of torque with excellent power characteristics. The full part numbers and technical details of Cat Cam’s new C20XE motorsport cam profiles are thus:-



partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]

(TURBO)

4600733

274 / 274°

236 / 236°

12.00 / 12.00mm

2.00 / 1.95mm

custom

HYDR: rally & cross















4600881

261 / 257°

233 / 221°

11.30 / 10.30mm

2.30 / 1.50mm

custom

MECH: rally & cross

4600882

267 / 261°

238 / 233°

12.00 / 11.30mm

2.90 / 2.50mm

custom

MECH: rally & cross

4600883

272 / 267°

242 / 238°

12.50 / 12.00mm

3.15 / 2.95mm

custom

MECH: rally & cross

4600893

285 / 277°

252 / 244°

13.25 / 12.75mm

3.90 / 3.35mm

custom

MECH: rally & race

4600868

293 / 285°

259 / 252°

13.00 / 12.50mm

4.20 / 3.70mm

custom

MECH: rally & race

4600864

295 / 287°

262 / 254°

12.50 / 12.00mm

4.50 / 3.95mm

custom

MECH: rally & race

4600880

293 / 285°

262 / 254°

13.00 / 12.25mm

4.50 / 3.95mm

custom

MECH: rally & race

4600896

293 / 285°

260 / 252°

13.75 / 13.25mm

4.85 / 3.65mm

custom

MECH: rally & race

4610801

277 / 261°

244 / 224°

12.75 / 10.15mm

2.80 / 0.80mm

custom

MECH: race & drag

4610803

277 / 278°

244 / 230°

12.75 / 11.00mm

2.80 / 0.80mm

custom

MECH: race & drag












Cat Cams delivers more power for the Clio 197 with latest race cam launches
Cat Cams delivers more power for the Clio 197 with latest race cam launches

Cat Cams delivers more power for the Clio 197 with latest cam profile launches

Belgian performance camshaft manufacturer Cat Cams is delighted to announce the launch of five new motorsport orientated cam profiles for the Renaultsport Clio 197.


Designed using unique, in-house developed software, the end result of Cat Cams work is a range of negative profiles manufactured from bespoke, hollow steel billets and CNC ground to ensure accuracy.


The range of specifications covers FIA Group N and rally cams designed to work with the stock Renault valve train and pistons, through to high lift short duration rally / rallycross and race cams specified for use with pocketed pistons and individual throttle bodies.


Here is the full technical breakdown of the new Cat Cams Clio 197 motorsport cam profile range:-


Cat Cams RenaultSport Clio 197 Technical Specification

Partnr.

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]


5504401

287 / 282°

234 / 229°

11.60 / 10.90mm

0.05 / 1.30mm

O.E.M.

HYDR: F.I.A. Gr.N

5504403

277 / 269°

243 / 234°

11.55 / 10.80mm

0.05 / 1.75mm

O.E.M.

HYDR: rally & cross

5504404

285 / 277°

251 / 243°

11.70 / 11.55mm

0.15 / 2.30mm

custom

HYDR: rally & cross

5504405

293 / 285°

258 / 251°

11.95 / 11.70mm

0.30 / 2.75mm

custom

HYDR: rally & race

5504406

300 / 293°

266 / 258°

12.20 / 11.95mm

0.50 / 3.30mm

custom

HYDR: rally & race












Cat Cams delivers more power for the Clio 197 with latest fast road cam launch
Cat Cams delivers more power for the Clio 197 with latest fast road cam launch

Cat Cams delivers more power for the Clio 197 with latest cam profile launch

Belgian performance camshaft manufacturer Cat Cams is delighted to announce the launch of a new fast road ‘Sport’ cam profile for the popular RenaultSport Clio 197.


Developing a cam profile for the Clio 197 F4R 830 engine is something of a challenge because the valve to piston clearance is minimal, limiting the extra amount of lift available to extract additional performance.


Designed using unique, in-house developed software, the end result of Cat Cams work is a pair of mild negative radius ‘Sport’ profiles manufactured from bespoke, hollow steel billets and CNC ground to ensure accuracy.


These ‘Sport’ profiles are a direct replacement for the original units as well as being compatible with the Renault factory hydraulic followers and variable valve timing system. Ideally suited to Clio 197 engines using the stock ECU and inlet plenum, Cat Cam’s ‘Sport’ profiles retain decent idle quality and the driveability needed for fast road use.


Cat Cams has also incorporated an adjustable cam position sensor ring on the inlet camshaft, enabling easy timing adjustment without having to alter the cambelt position.


Initial dyno results show that Cat Cams Sport profiles produce a minimum of 5 bhp and 5lb.ft of torque, running in conjunction with the factory inlet and ECU.


The new Clio 197 ‘Sport’ cams carry the part number 5504402 and are available now, priced at £686.06 + Vat and delivery. For motorsport users five additional rally, rallycross and race profiles have been launched at the same time.

Cat Cams RenaultSport Clio 197 Technical Specification

partnumber

duration

duration

maximum lift

lift at TDC

parts

application

[data link]

[0.1mm+cl]

[1.0mm+cl]

[cl=0]

[cl=0]

[-]


5504402

268 / 263°

234 / 227°

11.50 / 10.85mm

0.05 / 1.35mm

O.E.M.

Fast Road
